Common Tents: Single Fly, Double Fly and EPIP
We make three common canvas tents. The single fly tent is the simplest, with one fly of two layers. The double fly officer's tent adds a waterproof outer fly for more protection. The EPIP tent is a larger double fly tent with doors on all four sides. Full specifications are below.

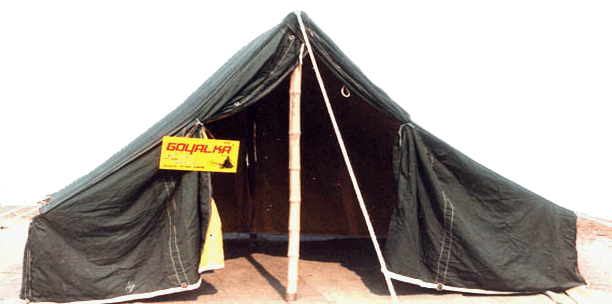

Single Fly Tent
A single fly tent is made of two layers of cloth: waterproof cotton on the outside and buff or blue sheeting cloth inside. It comes in five square sizes, from 8 x 8 ft to 16 x 16 ft.
| Construction | Single fly, two layers of cloth |
|---|---|
| Outer layer | Waterproof cotton |
| Inner layer | Buff or blue sheeting cloth |
| Sizes (ft) | 16 x 16, 14 x 14, 12 x 12, 10 x 10, 8 x 8 |

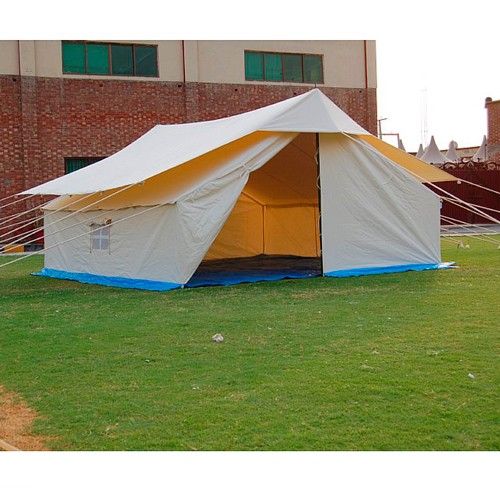

Double Fly Officer's Tent
The double fly officer's tent has two flies, each made of two layers of cloth. The outer fly is waterproof cotton and the inner fly is 8 oz cotton canvas, both lined with buff or blue sheeting. It stands 7 ft high at the centre, with 2 ft walls.

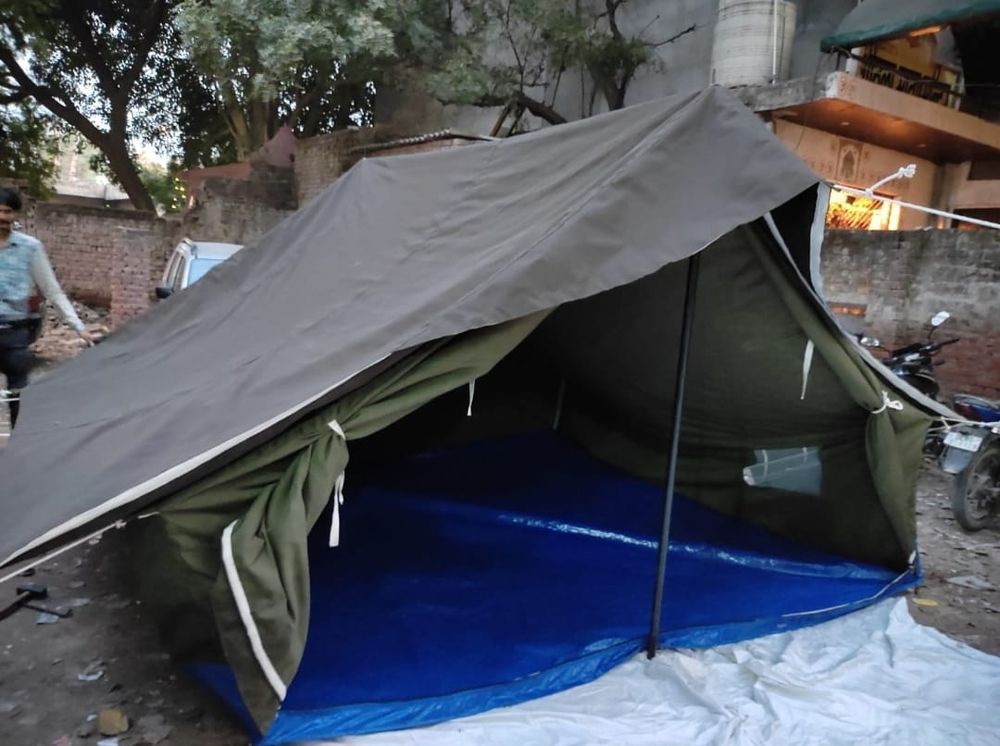

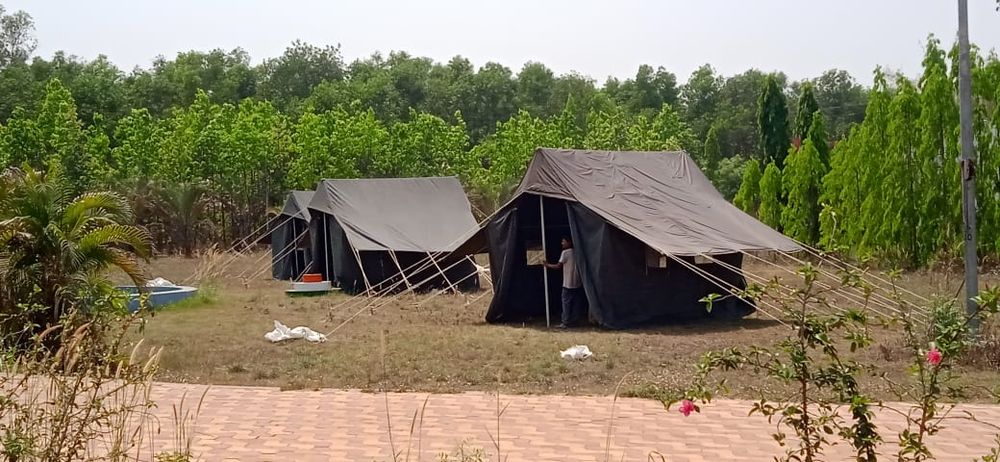

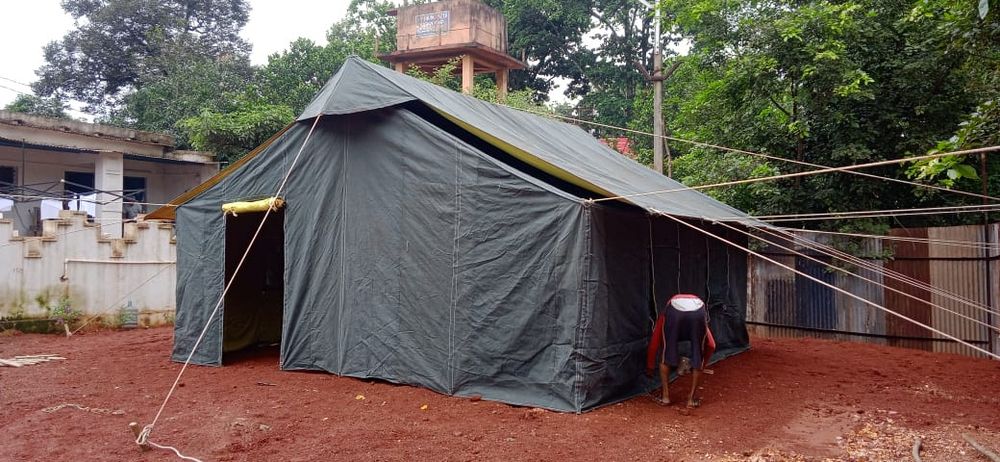

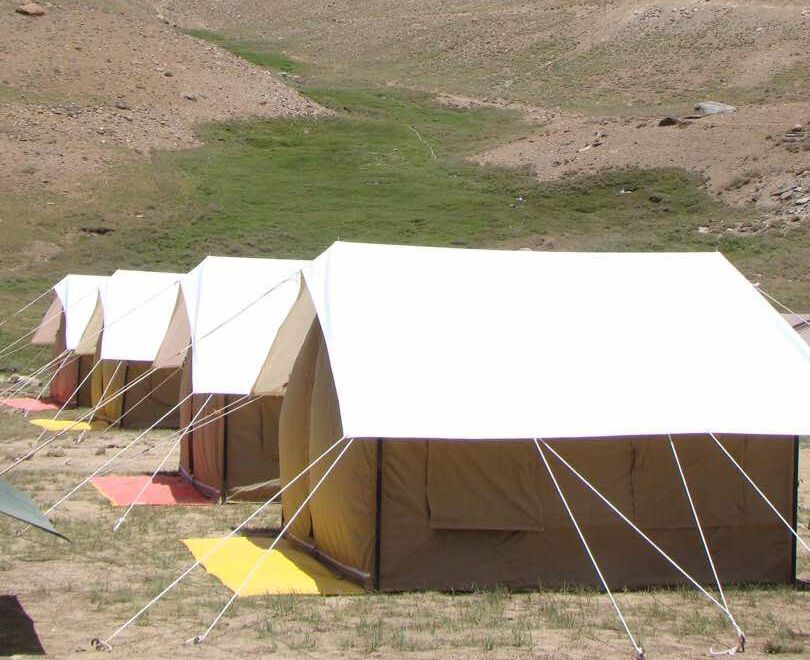

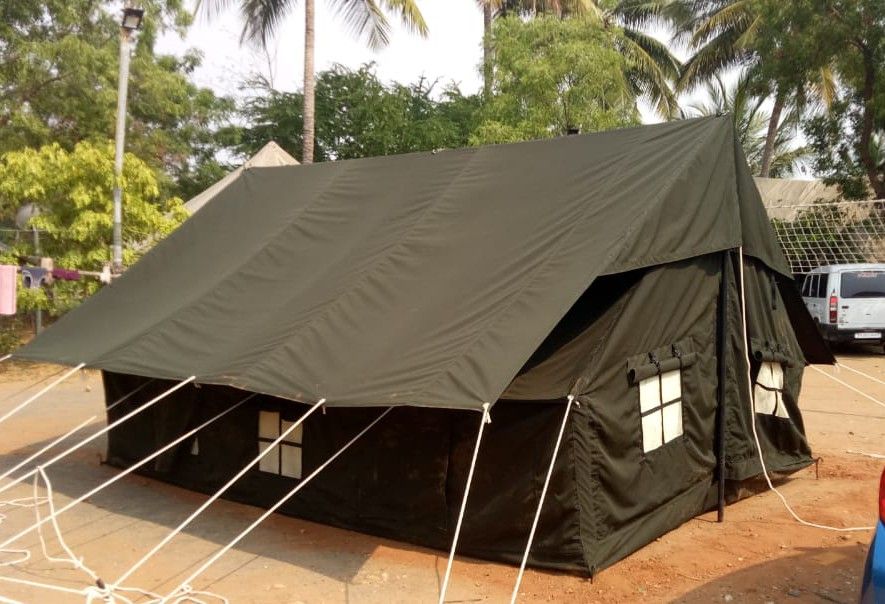

Double fly tents we have made
| Construction | Two flies (outer and inner), each of two layers of cloth |
|---|---|
| Outer layer, outer fly | Waterproof cotton |
| Outer layer, inner fly | Cotton canvas (8 oz) |
| Inner layer, both flies | Buff or blue sheeting cloth |
| Sizes (ft) | 16 x 16, 14 x 14, 12 x 12, 10 x 10 |
| Centre height | 7 ft |
| Wall height | 2 ft |

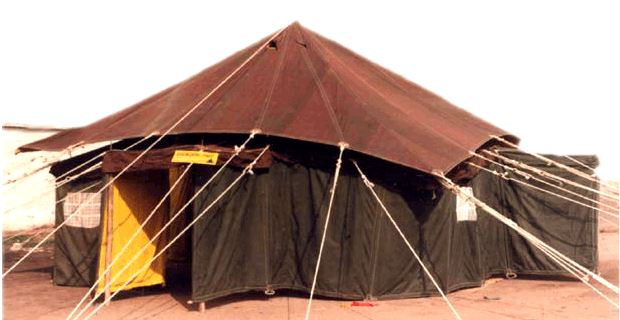

English Pattern Indian Police (EPIP) Tent
The EPIP tent is a double fly tent with a short ridge pole, usually 6 ft long, and two standing poles. The outer fly does not reach the ground; it covers the inner fly only. All four sides have a door that can also be raised as a canopy, and the tent has windows, ventilators, pockets and hangers. Both flies are usually two layers of cloth, and three layers can be used for special purposes.
| Construction | Two flies, each usually of two layers of cloth (three layers for special purposes) |
|---|---|
| Outer layer, outer fly | Waterproof cotton |
| Outer layer, inner fly | Cotton canvas (8 oz) |
| Inner layer, both flies | Buff or blue sheeting cloth |
| Poles | One ridge pole, usually 6 ft long, and two standing poles |
| Doors | One on each of the four sides, each can be raised as a canopy |
| Fittings | Windows, ventilators, pockets and hangers |
| Sizes (ft) | 24 x 16, 20 x 16, 16 x 16 |
| Centre height | 10.5 ft |
| Wall height | 6.5 ft |
Frequently asked questions
What is the difference between a single fly and a double fly tent?
A single fly tent has one fly made of two layers of cloth: waterproof cotton outside and sheeting cloth inside. A double fly tent adds a second, outer fly of waterproof cotton over an inner fly of 8 oz cotton canvas, so there is an extra layer between the people inside and the sun and rain.
What is an EPIP tent?
EPIP stands for English Pattern Indian Police. It is a double fly tent with a short ridge pole (usually 6 ft), two standing poles, a door on each of its four sides that can be raised as a canopy, and windows, ventilators, pockets and hangers. Our EPIP tents come in 24 x 16, 20 x 16 and 16 x 16 ft, with a centre height of 10.5 ft.
What sizes do single fly tents come in?
Standard sizes are 16 x 16, 14 x 14, 12 x 12, 10 x 10 and 8 x 8 ft. If you need something different, mention it in your enquiry: we welcome custom designs.
Can the EPIP tent be made with three layers?
Yes. It is usually made with two layers of cloth in both flies, and three layers can be used for special purposes. Mention this when you ask for a price.
Can I ask for a size or design that is not listed?
We welcome custom designs and keep your specifications confidential. Describe it in your enquiry, or email the drawing or tender specification to goyalka@gmail.com.
Need tents for a camp, a force or a relief operation?
Send the tent type, size and quantity, or share your tender specification. We will reply with a quotation.
